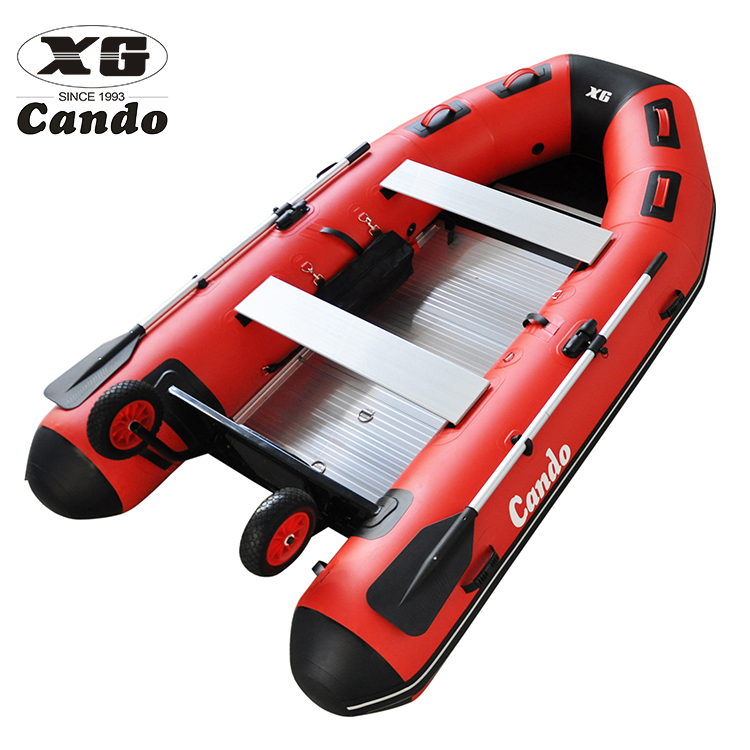

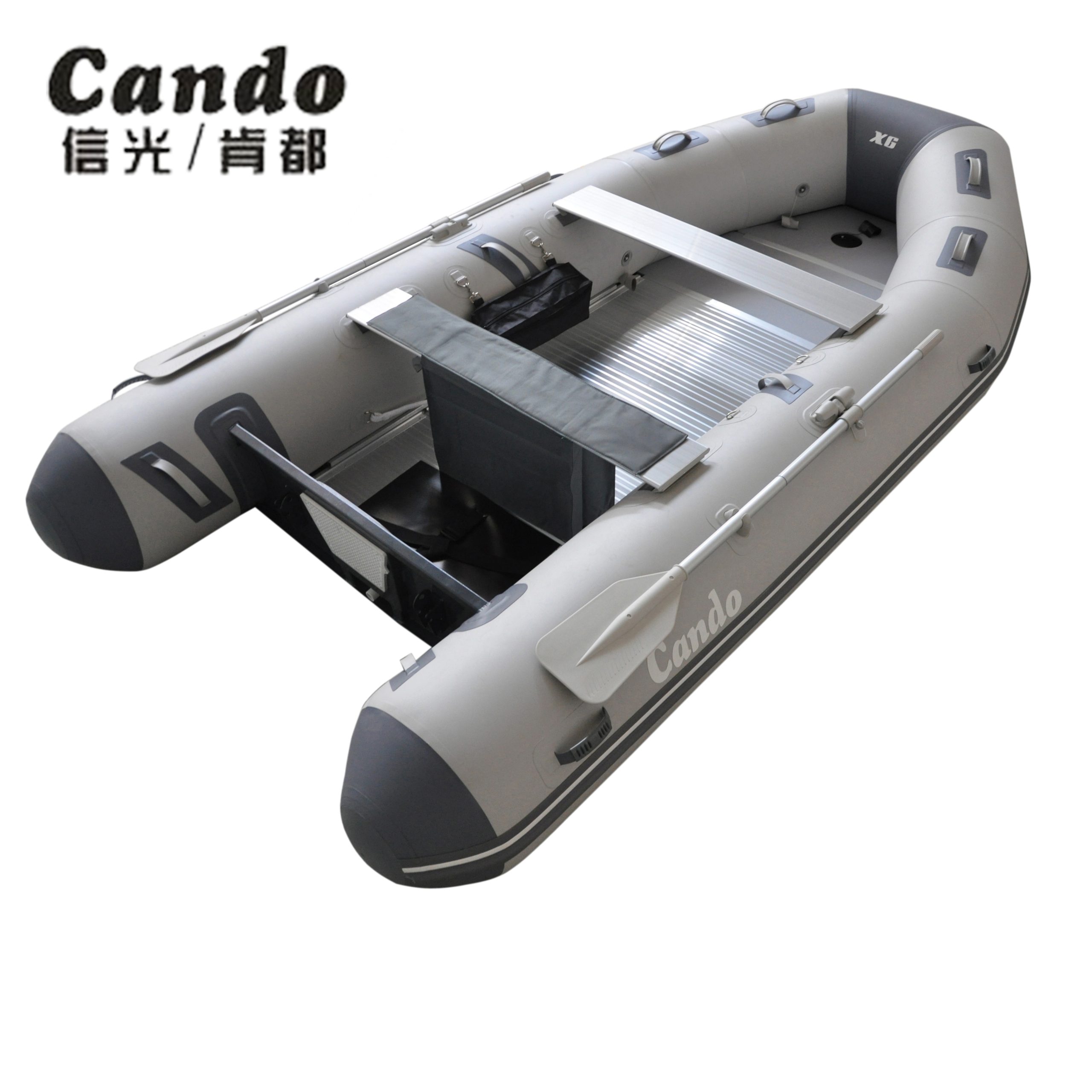

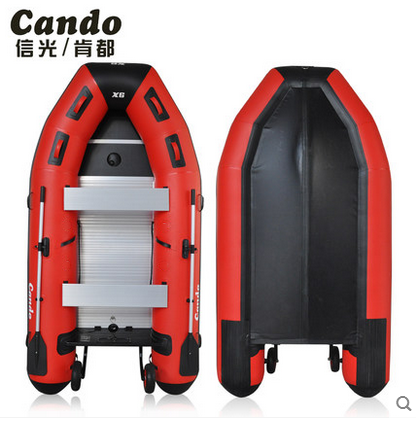

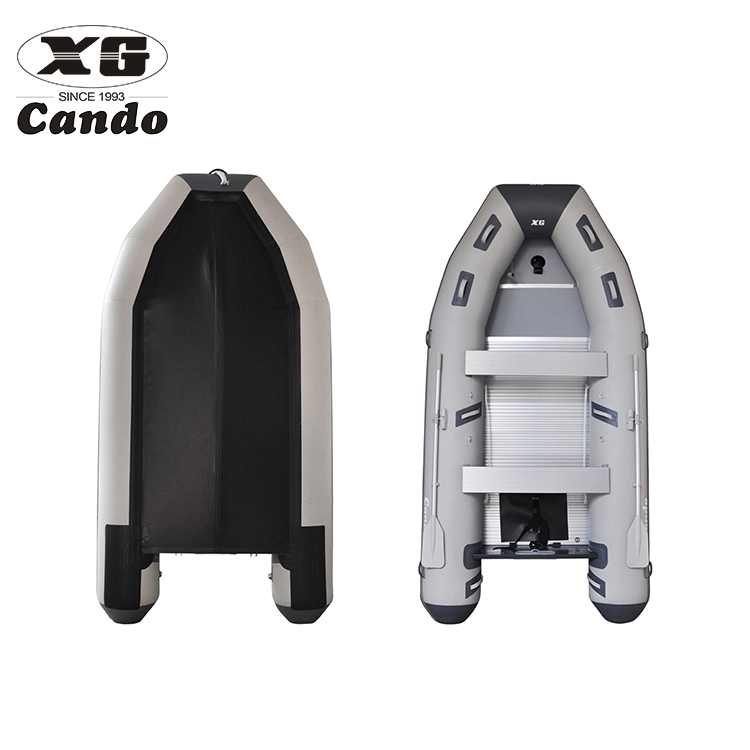

CE 2.7m Aluminium Transom Fishing Boat(ME270-A)

Suitable for underwater emergency rescue, flood prevention and relief, transportation of materials, urban waterlogging rescue, and relocation of disaster stricken people.

Product Description

The stern plate material is aluminum magnesium alloy stern plate, which has greater strength.
The buoy is enlarged and thickened, with a strong buoyancy when submerged in water. There is a 50cm wear-resistant strip at the bottom of the buoy.
The boat body is made of PVC mesh, which is abrasion resistant, durable, salt alkali resistant, sunlight resistant, high-strength, aging resistant and corrosion resistant.
The bottom of the ship is designed in a deep V-shape, with low water resistance, strong stability, and smooth driving.
The float adopts 100% hot air technology to ensure the airtightness of the flood prevention boat, increasing the peeling strength and tear resistance.
The float is designed with a diaphragm and multiple independent chambers, which not only protects the complete sealing of each chamber, but also flexibly adjusts the pressure balance of each chamber, improving the safety factor of the hull.
The accessories adopt high-frequency welding technology, which has high durability, heat resistance, cold resistance, and salt water resistance. The accessories are reinforced around the edges.
Reinforce wear-resistant strips at the bottom of the keel to improve its anti friction ability.
A safety rope is installed on the inner side of the buoy, and a safety handle is added to the hull to secure the grip and ensure the safety of personnel.

Product Parameter

Model

Unit

ME-230A

ME-270A

ME-300A

ME-330A

ME-360A

ME-380A

ME-420A

ME-470A

Over length

CM

230

270

300

330

360

380

420

470

Over width

CM

133

162

162

162

168

180

190

190

Tube diam.

CM

36

44

44

44

45

46

49

49

Air chamber



2+1

3+1

3+1

3+1

3+1

3+1

3+1

3+1

Max person



2+1

3+1

5

5+1

6

7

8

10

Max engine

HP

2.5

10

15

15

20

30

35

40

Max loading

KG

360

450

530

640

710

790

840

920

Net weight

KG

42

53

61

74

82

98

105

127
