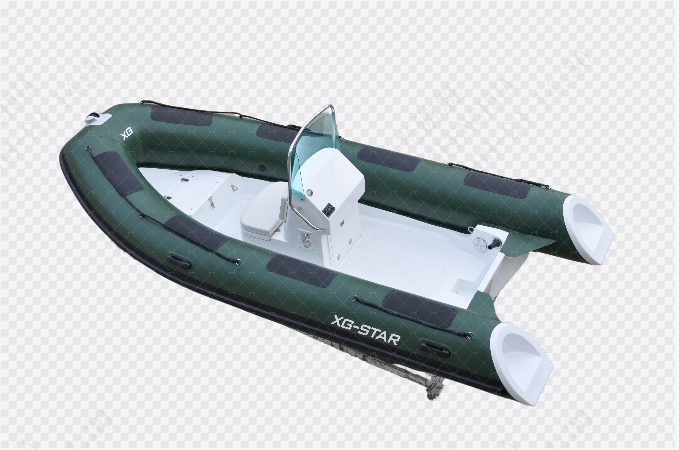

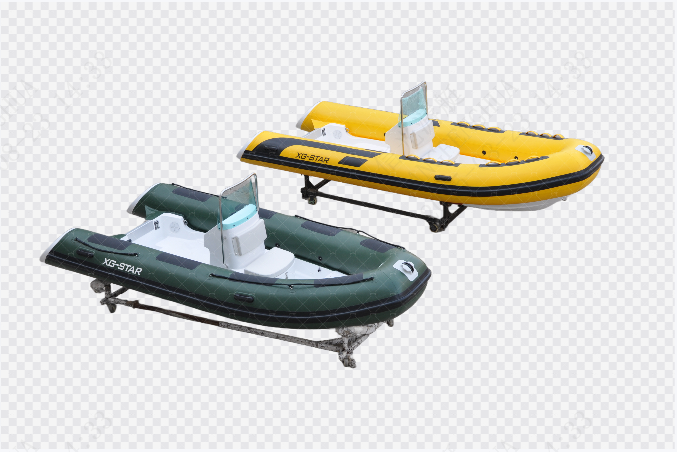

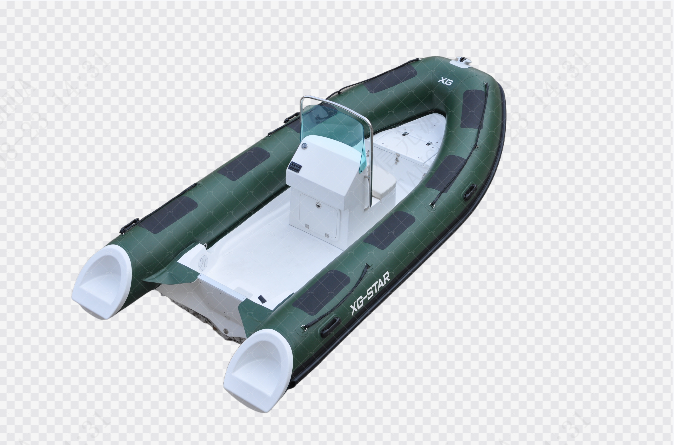

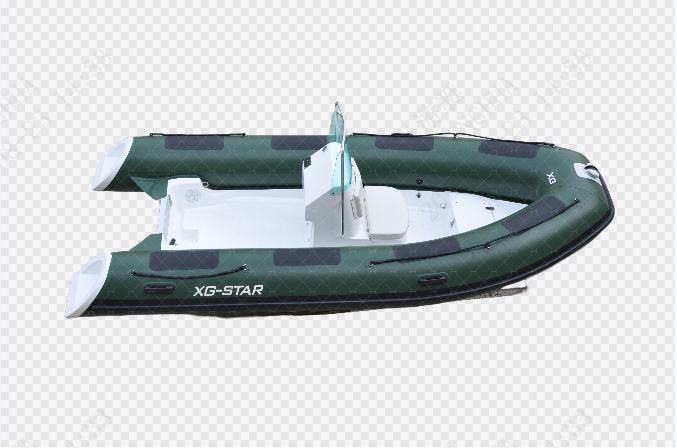

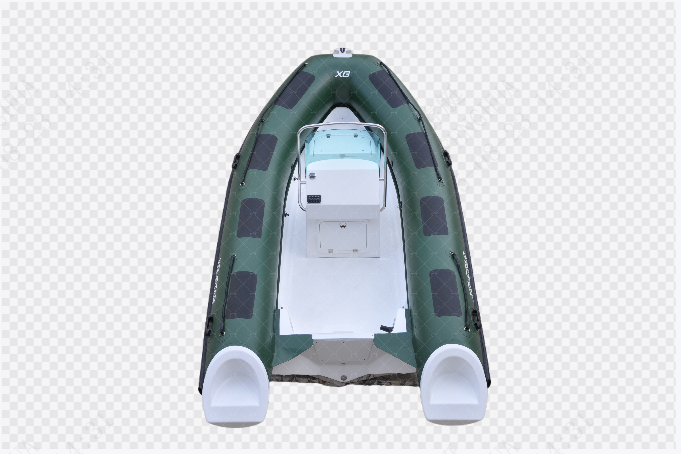

CE 4.2m Fiberglass Hull Inflatable Boat（RIB420）
Compared to aluminum alloy bottom shells, fiberglass bottom shells have lower prices and higher cost-effectiveness.
Product Description
Using epoxy resin as the matrix and advanced fiberglass molding technology to make the bottom of the ship, the deep V-shaped bottom travels more smoothly and quickly, and changes direction more flexibly.
Compared to aluminum alloy bottom shells, fiberglass bottom shells have lower prices and higher cost-effectiveness.
The inflatable float of the boat is made of PVC mesh material, which has the characteristics of wear resistance, corrosion resistance, aging resistance, and resistance to sunlight exposure.
The float adopts 100% hot air technology to ensure the airtightness of the inflatable boat, increasing the peel strength and tear resistance.
The float is designed with a diaphragm and multiple independent chambers, which not only protects the complete sealing of each chamber, but also flexibly adjusts the pressure balance of each chamber, improving the safety factor of the hull.
The accessories are bonded with PVC special polyurethane adhesive, which has high durability, heat resistance, cold resistance, and salt water resistance. The accessories are reinforced around the edges.
There is greater selectivity, and different configuration requirements such as driver’s seat, luxury seat, anchor seat can be selected according to different needs.
Product Parameter
|
Model |
Unit |
RIB300 |
RIB330 |
RIB360 |
RIB420 |
RIB470 |
RIB520 |
RIB560 |
RIB620 |
|
Over Length |
cm |
300 |
330 |
360 |
420 |
470 |
520 |
560 |
620 |
|
Over Width |
cm |
162 |
162 |
162 |
187 |
198 |
198 |
228 |
248 |
|
Tube Diam. |
cm |
42 |
42 |
42 |
45 |
48 |
48 |
54 |
54 |
|
Air Chamber |
3 |
3 |
3 |
3 |
3 |
5 |
5 |
5 |
|
|
Max Person |
4 |
4 |
6 |
8 |
9 |
10 |
11 |
12 |
|
|
Max Engine |
hp |
10 |
15 |
18 |
40 |
48 |
60 |
60 |
90 |
|
Max Loading |
kg |
550 |
670 |
700 |
780 |
900 |
1280 |
1950 |
2540 |
|
Net Weight |
kg |
81 |
85 |
93 |
115 |
175 |
180 |
265 |
350 |
